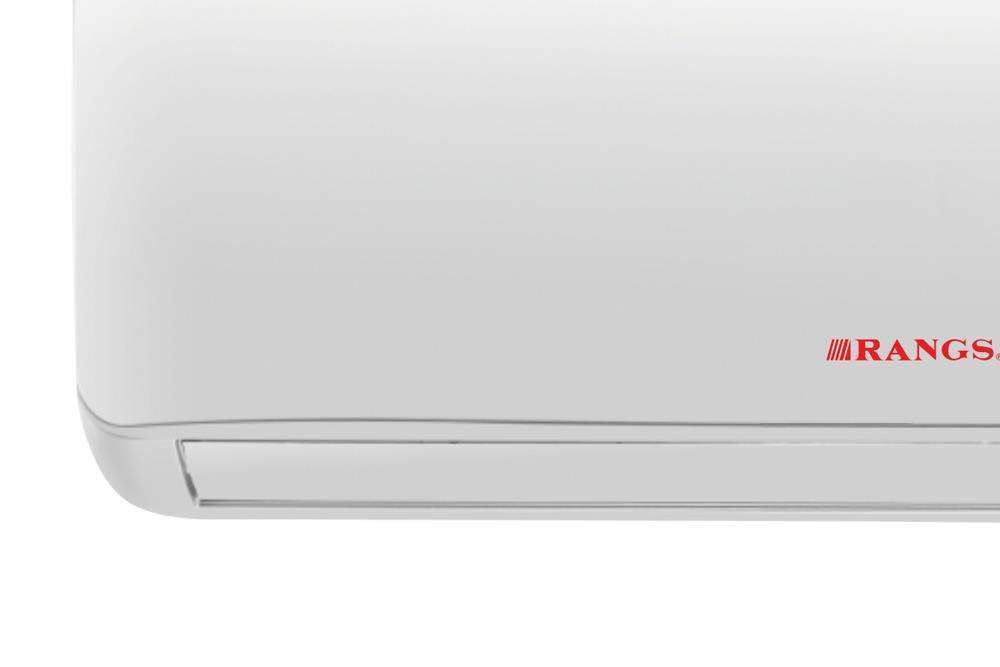

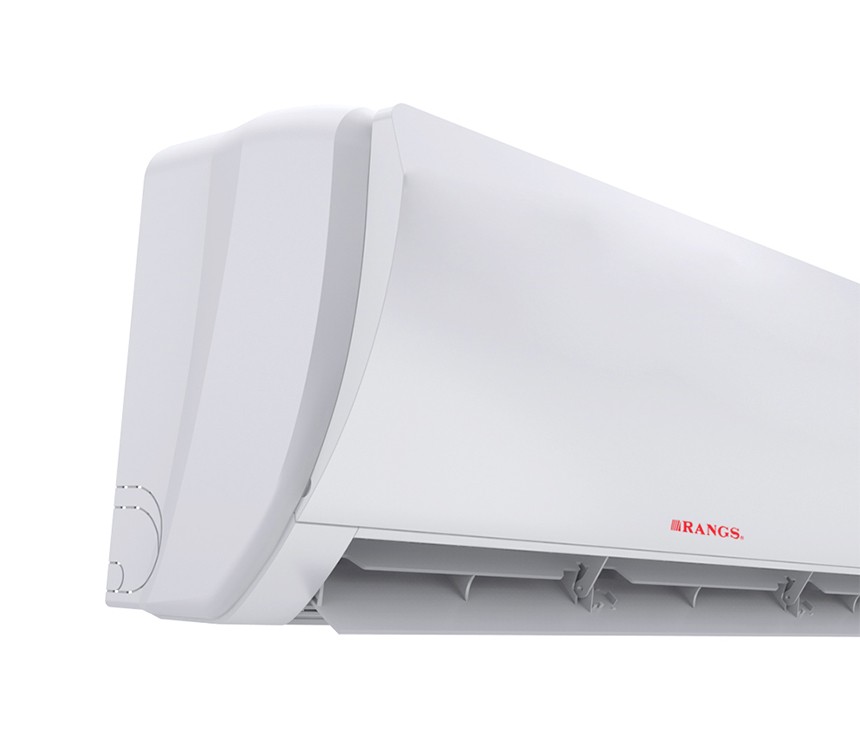

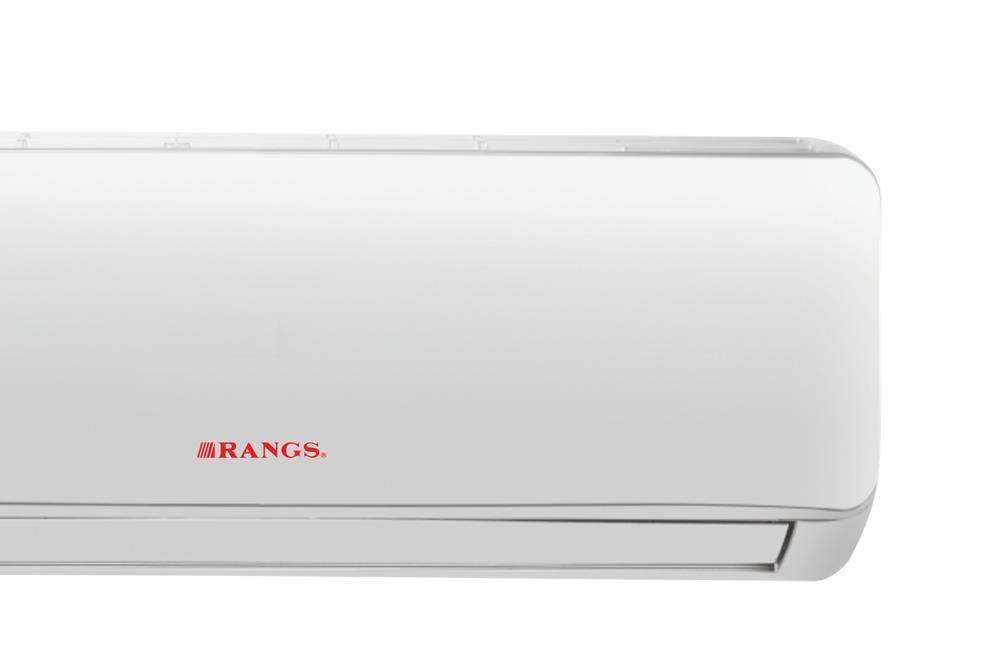

Rangs RAC-14SH 01 Ton Split Type AC

Sold by

(0 customer reviews)

Visit Store

Top Selling Products

RANGS 1.5 TON SMART-WI-FI INVERTER SPLIT TYPE AC

৳58,350.00
Rangs RAC-14SH 01 Ton Split Type AC

৳35,500.00
GS-24XPUV32-Gree Pular Split Type Air Conditioner (Inverter-2.0 TON)

৳78,550.00
GSH-24NFA410 Fairy-Split Type, H&C (2.0 TON)

৳70,550.00
RANGS 02 TON SMART-WI-FI INVERTER SPLIT TYPE AC

৳68,000.00
RANGS 01 TON SMART-WI-FI INVERTER SPLIT TYPE AC

৳45,100.00

Description reviews

Type of AC :	Split / Window/Light Commercial/VRF/Chiller ;	Details	Split
	Fixed Speed / Inverter		Fixed Speed
	Cool only/ Heat & cool		Cool only
Capacity:	Cooling capacity	BTU	12000 BTU/HR
Power supply	Rated Voltage	Volts	220-240 V
Power supply	Rated frequency	Hz	50Hz
Running condition	Withstanding Operating conditions: IDU	°C	16-31
	Withstanding Operating conditions: ODU	°C	20-43
	Cooling Area	sq. ft	90- 120
	Lowest running voltage	Volts	165
	Highest running voltage	Volts	264
Cooling	Capacity at rated condition (If required)	Watt	5275
Cooling	Power consumption in rated condition	Watt	1900
Cooling data	SEER/EER/COP (If any special requirement)	kWh / kWh	2.77
	Cooling Input Current	A	8.25
	Max. Input Current	A	14.1
General	Indoor side airflow (Max)	m3/h	870
	Indoor side noise level (Max)	dB(A)	47
	Dimensions (LWH)	mm	947321232
	Packing (LWH)	mm	1025400300
	Weight: Net & Gross	Kg	12.5±0.5 & 15.78±0.5
Motor	Motor Type: Single-Phase Induction	Details	Induction (PG)
	Motors Mechanical output Wattage	Watt	35
	Capacitor	uF	2
	Indoor Fan speed (Turbo)	r/min	1200
	Thermal protector	Yes/ No	yes
Fan	Dimensions (Dia* Length)	mm	Φ108, L- 700±1
Fan	Material of Blades	Details	SAN 30% GF
Evaporator	Rows * Tubes	No's	2*18
	Tube pitch (a) x row pitch (b)	mm	21 x 12.7
	Coil length		755
	Tube specification		ODΦ7.0 x 0.25 x0.18 IGT
	Tube Material & Grade	Details	DHP COPPER, C12200
	Fin spacing	mm	1.2
	Fin type (Bare or Golden/Blue/Silver Coated)	Details	Golden Coated
	Fin Material		Aluminum
Control board	Transformer Base/ SMPS Base		SMPS
	PU/ Protective layer		PU

	Wi-Fi support, Connectivity Module inbuilt / Separate module		NO
	Display PCB: LCD Display/ 7Seg Display/ LED indicators		7Seg Display
	Swing Motors: Qty, Purpose		2, Left/right, Up/Down
	Temperature sensor: Nos & Locations		2, air inlet, Eva inlet
Other	Filter Type		Regular
	Power cord & Plug : (Standard name & version)		Yes
	Connecting wire between IDU & ODU: Length	ft	16.4
	Connecting tube(CU with insulation) between IDU & ODU : Length	ft	12
General	Outdoor side noise level (Hi/Mi/Lo)	dB(A)	59-Turbo; 58-High
	Dimension : LWH (Including foot & service valve)	mm	771 x 320 x 552
	Packing: LWH	mm	820 x 360 x 625
	Weight: Net & Gross	Kg	35±1 & 38±1
	Max. discharge/Suction pressure	MPa	4.15/1.15
Compressor	Preferred Model	Details	Samsung-UG8CH8180DJH
	Type: Fixed speed / Inverter	Details	Fixed Speed
	Locked rotor Amp(LRA)	A	46.0 A at 220 V
	Thermal protector	Yes/ No	No
	Overload Protector (Location)	Details	internal
	Capacitor (If applicable)	uF	45
Fan motor	Motor Type: Single-Phase Induction	Details	Induction
	Motors Mechanical output Wattage	Watt	35
	Capacitor	μF	3
	Outdoor Fan speed	R/min	850
	Thermal protector	Yes/ No	Yes
Fan	Dimensions (Dia* Hight)	mm	Φ400, H-115
	Number of Blades	No's	3
	Material of Blades	Details	ABS 20%GF
Condenser	Rows*Tubes	No's	2*24
	Tube pitch(a)x row pitch(b)	mm	21 x 12.7
	Coil length		722 OR; 703 IR
	Tube outside & Inside diameter		ODΦ7.0 x 0.25 x0.18 IGT
	Tube Material & Grade	Details	DHP COPPER, C12200
	Fin spacing	mm	1.2
	Fin Type	Details	Bare
	Fin Material	Details	Aluminum
Expansion device	Capillary/EEV		Capillary
	Length (IF capillary)	mm	325
	Diameter( Inside & Outside) (IF capillary)	mm	IDΦ1.6 x ODΦ3.0
	Material (IF capillary)	Details	Copper Tube
Other	Gas/ Refrigerant Type	Details	R-410a
	Gas/ Refrigerant Qty	Grams	1000
	Yes/No	Pcs	Yes
	RF / IR Based	Details	IR

Installation charge will be TK 3500

Installation Charges are not Included. The cost & works for electric wiring, civil position, and Angle, extra pipe charge should be borne by the customer.
